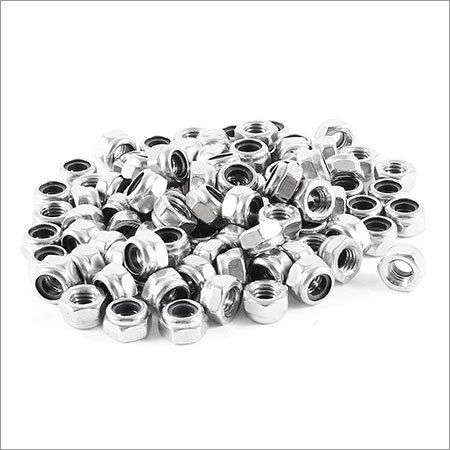

Nylock Nuts

Nylock Nuts
Nylock Nuts
Product Code : 16
Product Description

Being a certified company, we are successfully meeting the requirements of our clients by offering a wide array of Nylock Nuts that are widely used for fitting purposes. Offered nuts are manufactured utilizing quality tested materials with the help of advanced techniques. Further, these are tested by our quality analysts to confirm a defect free product delivery at our clients' end. Available in various dimensions in accordance with our customers' specific demands, these Nylock Nuts can be easily availed from us at nominal prices.

Features:

  • Robust in design
  • Easy installation
  • Dimensional accuracy
  • Materials: Mild Steel, Boron steel, Alloy Steel & Stainless steel (A2-70), 18-8, A4 Stainless steel.
  • Grade: Class 5, Class 8, Class 10
  • Size: M3 to M30 (in cold forging), 3/16" to 1" (in cold forging)
  • Finish: White Zinc plated, Yellow Zinc Plated, Auto Black & others as per customer requirement
  • Standards: DIN 982, DIN 985, UNC, UNF, BSW, BSF
  • Hardness: Vickers HV5: 302 (Max), HRC: 30 (Max).

Standard specifications of our DIN 982 Nonck Nuts are as below:

Nominal size

Thread pitch (p)

Thickness/ height (mm)

Width/ Across flat (s)

Width/ Across corners (e)



Min

Max

Min

Max

Min

M5

0.80

6.00

6.30

7.78

8.00

8.79

M6

1.00

7.70

8.00

9.78

10.00

11.05

M8

1.25

9.14

9.50

12.73

13.00

14.38

M10

1.00

11.14

11.50

16.73

17.00

18.90

M10

1.25

11.14

11.50

16.73

17.00

18.90

M10

1.50

11.14

11.50

16.73

17.00

18.90

M12

1.25

13.64

14.00

18.67

19.00

21.10

M12

1.50

13.64

14.00

18.67

19.00

21.10

M12

1.75

13.64

14.00

18.67

19.00

21.10

M14

1.50

15.30

16.00

21.67

22.00

24.49

M14

2.00

15.30

16.00

21.67

22.00

24.49

M16

1.50

17.30

18.00

23.67

24.00

26.75

M16

2.00

17.30

18.00

23.67

24.00

26.75

M18

2.50

19.16

20.00

26.18

27.00

29.56

M20

2.50

20.70

22.00

29.16

30.00

32.95

M22

2.50

23.70

25.00

31.00

32.00

35.03

M24

3.00

26.70

28.00

35.00

36.00

39.55
