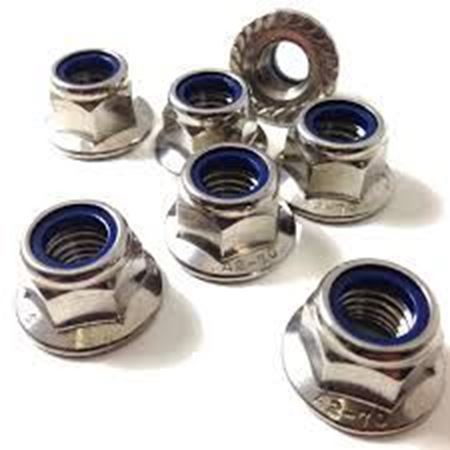

Flange Nut

Flange Nut
Flange Nut
Product Code : 18
Product Description

We are an unparalleled name engaged in offering a premium quality range of Flange Nut. It is a washer-like base to distribute pressure over a greater surface area and ensure the fastener stay tight. This is commonly used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer. In order to ensure their flawless nature, our quality inspectors check this on set quality parameters. As per the diversified demands of clients, this Flange Nut is offered to the clients at most reasonable prices with no hassle.

Features:

  • Easy to install
  • Accurate in dimensions
  • Rust free surface
  • Materials: Low carbon steel, Alloy steel & stainless steel (18-8,A2-70)
  • Size: M3 to M20
  • Grade: Class 5, Class 6, Class8, Class A2
  • Finish: White/ Blue/ Yellow Zinc plated, stainless steel, galvanized or any other finish as per customer requirements
  • Standards: Din 6923 JIS 1190
  • Hardness: Class 8(M5 to M16)- HV (Vickers hardness) of 188-302

Standard specification of Our DIN 6923 Flange Nuts are as below.

Nominal size

Thread pitch (p)

Overall height (h)

Width across flat (s)

Flange diameter (d2)



Min

Max

Min

Max

Ref.

M3

0.50

3.40

4.0

5.30

5.50

80.

M4

1.70

4.20

4.65

6.78

7.0

10.0

M5

0.80

4.70

5.0

7.78

8.0

11.8

M6

1.00

5.70

6.0

9.78

10.0

14.2

M8

1.25

7.60

8.0

12.73

13.0

17.9

M10

1.50

9.60

10.0

14.73

15.0

21.8

M12

1.75

11.60

12.0

17.73

18.0

26.0

M16

2.00

15.30

16.0

23.67

24.0

34.5

M20

2.50

18.90

20.0

29.67

30.0

42.8
