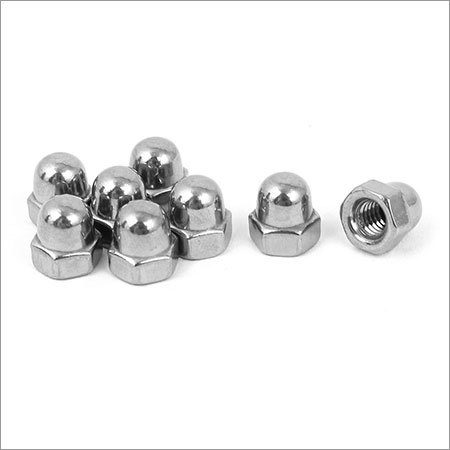

Dome Nut

Dome Nut
Dome Nut
Product Code : 20
Product Description

We are a leading manufacturer and supplier of highly efficient Dome Nut. The offered nut is manufactured with the help of cutting-edge techniques by making use of fine grade materials. This is to prevent contact with the external thread to protect the threads or protect other things the threads would rub against. In addition, this Dome Nut is available in different specifications to meet the specific requirements of our clients at industry leading prices.

Features:

  • Sturdy in design
  • Fine finish
  • Resistance to heat
  • Materials: Mild steel & Stainless steel (18-8, A2-70)
  • Size: M3 to M24
  • Finish: Blue Zinc plated, stainless steel, Galvanized or any other finish ar per customer requirements
  • Standards: Din 1587, SAE J483

Standard specification of Our DIN 1587 Dome Nuts are as below.

Nominal size

Thread pitch (p)

Overall height (h)

Width/ Across flat (s)

Width/ Across corners (e)



Ref.

Min.

Min.

M3

0.50

6

5.50

6.08

M4

0.70

8

7

7.74

M5

0.80

10

8

8.87

M6

1.00

12

10

11.05

M8

1.25

15

13

14.38

M10

1.50

18

17

18.90

M12

1.75

22

19

21.10

M16

2.00

28

24

26.75

M20

2.50

34

30

33.53

M24

3.00

42

36

39.98
